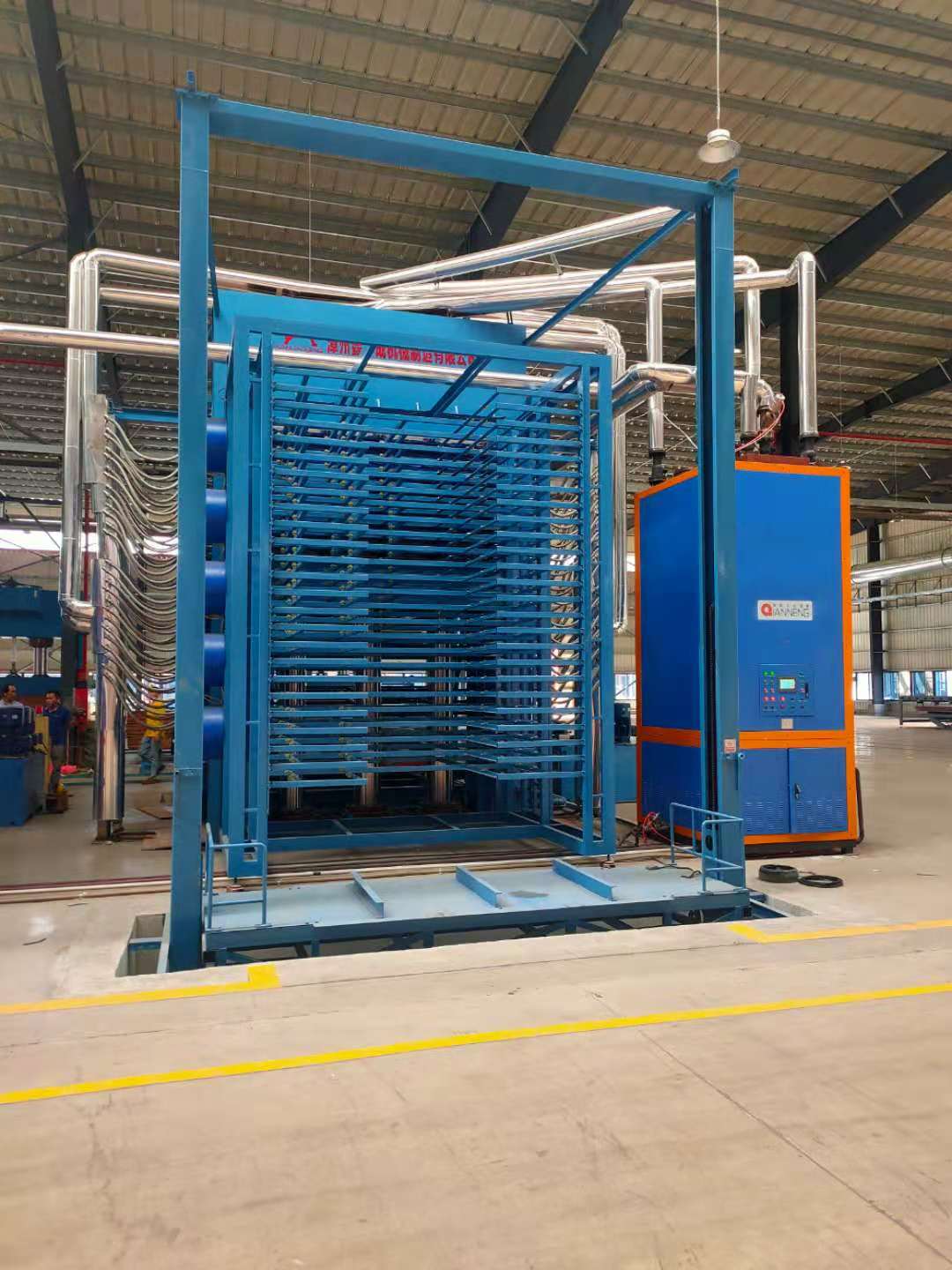

4*8尺50層全自動熱壓機(jī)投入使用----扶綏美麗森林木業(yè))
Items model | XHC800-50-70-42-360-3 | |
Nominal | 8000KN | |
Rated pressure | 25Mpa | |
Hot press plate size | 2700×1350×52MM | |
Disdance of hot platens | 70MM | |
number of hot press plate | 51 | |
Layers | 50 | |
Closing time | ≦20S | |
Overall dimension | 3555*1350*9554mm | |
Weight | 130000kg | |
Heating material | Water,steam or oil | |
Upper and bottom beam | 1450mm | |
Oil cylinder quantity | 360*3pcs | |
PLC | ||
Contactor | ||
Closing time | 10S |
